GOST Cast Iron Flanged Gate Valve With Handle Full Port Lightweight

Product Categories
China • Yuanda Valve Group Co., Ltd.
Contact Now

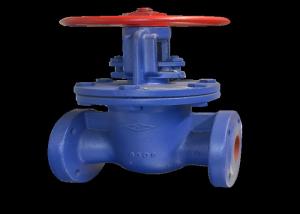

GOST Cast Iron Flanged Gate Valve With Handle Full Port Lightweight

Brand Name : Y

Model Number : Z41T-16

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000 pcs per year

Delivery Time : 5-8 work days

Packaging Details : wooden box 1200*1100*1100

Product name : Flanged Gate Valve

Standard : Russia

Color : Customer's Request, blue, black

Body material : Ductile Iron

Connection : Flange Ends

Structural : Wedge

Pressure : Medium Pressure, Low Pressure

Temperature of media : Medium Temperature, Normal Temperature

Type : rising stem

Media : Water

Contact Now

GOST Cast Iron Light Body Handle Power Rising Stem Flanged Gate Valve

Usage

Turn on or turn off the pipelines were the nominal pressure is ≤1.0 mpa and the medium must be steam, water or oil, which can be used in fields of petroleum industry, chemical industry, pharmaceutical industry and power industry

Main part and material

Name Material
Body and bonnet Iron
Disc Iron
Stem 2Cr13
Handel wheel Iron

Dimension

DN L D D1 b-f Zxфd
50 180 160 125 17-2 4xф18
80 210 195 160 19-2 4xф18
100 230 215 180 19-2 8xф18
150 280 280 240 21-3 8xф23
200 330 340 295 23-3 12xф23
250 450 395 350 26-3 12xф23
300 500 445 400 26-3 12xф23

GOST Cast Iron Flanged Gate Valve With Handle Full Port LightweightGOST Cast Iron Flanged Gate Valve With Handle Full Port Lightweight
